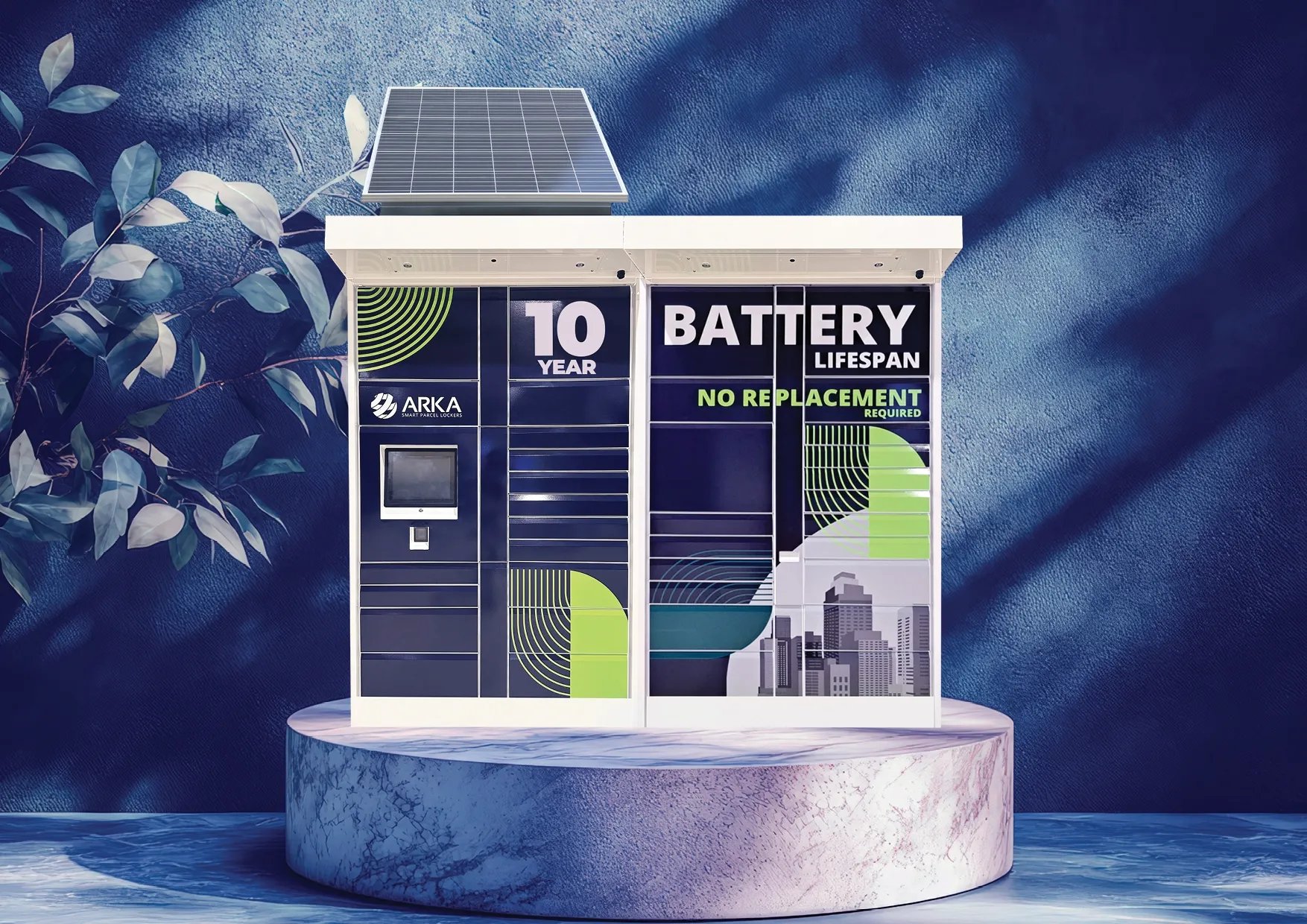

The Lumen Locker
The standout achievement of 2024 remains the production of the autonomous Lumen locker, which features:
- • 10-Year Battery Lifespan – no replacements needed.
- • 12-Inch Touchscreen Display – delivering a seamless user experience.
- • Always-On Router – ensuring continuous internet connectivity.
- • Video Surveillance & Alarm System – providing maximum security.
We are ready to take over 2025 with our groundbreaking technology!
The battery is encapsulated and protected against extreme temperatures as low as -25°C. It boasts a 10-year lifespan with no replacements required.
We have developed an electrical heating system for the battery compartment, enabling year-round charging no matter the country.
We integrated a new 4G mobile router with an "always-on" feature, guaranteeing uninterrupted internet connectivity for seamless remote access.
We introduced a 12-inch LCD color touchscreen monitor, offering an intuitive and user-friendly interface that enhances the overall user experience.
Despite its autonomous nature, we developed low-power technology to ensure maximum security with a Video Surveillance & Alarm System.
We implemented a new electronic control board, which we manufacture in-house rather than sourcing from foreign suppliers, resulting in reduced power consumption.
Photo Gallery
Default Specifications
Highlights of the key features of the Lumen Locker, the most advanced solution ever designed for the last mile segment of courier and postal companies.
Outdoor paint with UV resistance
Exterior structure made of galvanized metal sheets
Battery designed for outdoor use, resistant to temperature fluctuations, with a lifespan of up to 10 years
Maximum weight per compartment: 35 kg (77 pounds)
Bluetooth connection (module produced by ARKA)
Total locker weight including counterweight 600 kg (1323lbs)
Common chassis for the columns with height adjustable stands
Electromagnetic locks
S, M and L compartments available
Solar panel
Customizable compartment dimensions
Rust protection with 5-year warranty
12-Inch Touchscreen Display
Rack system for enhanced accessibility
Remote reset
Optional Features
The Lumen Locker is a key part of our network development strategy. Beyond its low consumption and user-friendly features, it operates efficiently in high-usage and challenging locations, enabling to capitalize on prime sites.
4G + GPS
GSM module and encrypted communication
Electrical module for CCTV with SD memory and 1 camera produced by ARKA (snap video)
Ultra secure software feature - recognition of biometric data
QR scanner
SLA available
Fleet management software
Deployment
LED lighting system
Proof of delivery
Alarm System with Vibration Sensor and Siren
Encrypted electronic key
Vibration sensor
Router
Modular system (add-on column)
| Overall Dimensions |
|---|
Width: 1357 mm Height: 2110 mm Depth: 780 mm |
| Compartment Dimensions | ||
|---|---|---|
| S-Size | M-Size | L-Size |
Width: 440 mm Height: 85 mm Depth: 610 mm | Width: 440 mm Height: 180 mm Depth: 610 mm | Width: 440 mm Height: 370 mm Depth: 610 mm |
Solar-powered package locker Control Features
We incorporated a new 4G Mobile Router with an "always ON" feature, ensuring continuous remote access to the router. For optimal operational control and security, the router must remain powered continuously. Currently, aside from the SunCharge Locker, no other Next-Gen locker possesses this capability, resulting in restricted access between the locker and the server.
A remote heartbeat is a control option that allows for the monitoring of the status of a solar-powered smart parcel locker from a remote location.
In the context of a smart parcel locker, a heartbeat refers to a signal or message sent from the locker to a central server at regular intervals to indicate that the locker is still functioning properly.
This control option is particularly useful for ensuring the reliability of a solar powered smart locker. By receiving regular updates on the status of the locker, operators can quickly identify and address any potential issues before they cause a disruption in service. Additionally, remote heartbeat monitoring can help to prevent unauthorized access to the locker by alerting operators to any unusual activity.
Remote door opening allows for the opening and closing of a solar powered smart parcel locker's doors from a remote location. This feature is especially useful for package delivery lockers that are located in areas where physical access may be limited or where security is a concern.
The remote door opening control option typically works by using a central server to communicate with the locker's control system. Authorized personnel can then use a secure login to control the system and remotely open or close the locker's doors as needed.
There are several benefits to using remote door opening as a control option for smart parcel lockers. For example, this feature allows delivery personnel to easily deposit or retrieve packages from the smart lockers without requiring physical access to the locker itself. This can help to reduce the risk of theft or tampering and improve the overall security of the smart lockers.
This is a feature that allows for secure and convenient communication between the parcel locker and the server. This feature involves the use of a special access code that is entered into the locker's pin pad to initiate the communication process.
The pin pad is typically located on the locker's exterior and is used by users to enter their code to retrieve their packages. To initiate communication with the server, a special code is entered into the pin pad. This code is typically provided by the operator or administrator and can be used to perform a variety of functions, such as updating the locker's firmware, checking the status of the locker's peripherals, or providing real-time information about the locker's operations.
There are several benefits to using the pin pad to initiate communication between the smart locker and the server. For example, this feature provides a secure and convenient method of communication that does not require physical access to the locker. Additionally, the use of a special code helps to prevent unauthorized access or tampering with the locker's hardware or software.
Sending the door lock status of a parcel locker to a central server is a control option that provides real-time information about the status of the locker's doors. This feature allows operators to monitor the locker remotely and receive alerts if there are any issues with the door lock status.
The control option works by using sensors or other monitoring devices to detect the position of the locker's doors. The sensor then sends a signal to the locker's control system, which in turn sends the information to a central server. The server can then provide real-time information about the status of the locker's doors, including whether they are open or closed.
There are several benefits to using door lock status monitoring as a control option for parcel lockers. For example, this feature allows operators to quickly identify any issues with the locker's doors, such as if a door has been left open or if there is a problem with the locking mechanism. This can help to prevent theft or damage to packages and improve the overall security of the locker.
Parcel locker firmware remote update is a control option that enables the remote updating of the software that controls the solar powered locker's functionality. This control option allows operators to update the locker's software from a central location, saving time and resources.
Firmware is the software that is installed on the smart locker's hardware, controlling its functionality, security, and user interface. Firmware updates are necessary to fix any bugs, add new features, or improve the security of the locker. Firmware remote updating eliminates the need for an onsite presence, allowing these updates to be performed quickly and efficiently.
This control option works by sending the updated firmware to the smart locker's control system via a secure connection, which then updates the firmware on the locker's hardware. The firmware update can be scheduled to occur during non-peak hours to avoid disrupting the locker's normal operations.
There are several benefits to using firmware remote update as a control option for parcel lockers. For example, this feature allows operators to quickly and efficiently update the software on multiple smart lockers at once, reducing the time and resources needed to perform updates. This can also help to reduce the risk of downtime or other issues that could impact the locker's operations.
The status reporting feature of a parcel locker is a valuable tool that allows for the monitoring and reporting of the smart locker's peripherals. This feature involves the use of GSM technology to transmit the status of the smart locker's peripherals to a central server at a specific time determined by the client.
The peripherals can include components such as the locking mechanism, sensors, and other monitoring devices. By transmitting the status of these components to a central server, operators can monitor the health of the parcel locker's hardware and quickly identify any issues that may require maintenance or repair.
The status reporting feature is typically set up by the client to transmit the data at a specific time, such as at regular intervals throughout the day or at the end of each business day. This data is then stored on the central server, where it can be accessed and analyzed as needed.
There are several benefits to using the status reporting feature on a parcel locker. For example, this feature can help to prevent downtime or other issues by proactively identifying any issues or maintenance needs with the locker's hardware. Additionally, the status reporting feature can be used to optimize maintenance schedules, reducing costs and minimizing disruption to locker operations.
The remote control of the lights is a feature that allows for the remote management of the lighting system on a parcel locker. This feature provides convenience and security for users, as well as energy efficiency and cost savings for operators.
The remote control of the lights feature is typically accessed through a central server, which communicates with the smart locker's control system. Authorized personnel can then use a secure login to remotely turn on or off the smart locker's lights as needed. This feature can be especially useful for lockers located in areas with limited natural light or for users accessing the locker in low-light conditions.
Parcel locker status reporting is a feature that allows for the monitoring and reporting of the locker's status. This feature provides valuable information about the locker's operations, including the status of packages and any issues or maintenance needs.
The status reporting feature typically involves the use of sensors or other monitoring devices that collect data about the parcel locker's status. This data is then transmitted to a central server, where it can be used to provide real-time information about the locker's operations. This feature can be used to proactively identify any issues or maintenance needs with the locker, allowing for quick resolution and minimizing downtime.
Remote reset is a feature that allows for the resetting of a package locker's control system from a remote location. This feature is useful for resolving technical issues that may arise with the locker's software or hardware, such as a malfunctioning control system.
The remote reset feature works by sending a signal to the locker's control system from a central server, which triggers a reset of the system. This can be done without the need for physical access to the locker, which can save time and resources in troubleshooting and resolving technical issues.
In addition, remote reset can be used to provide increased security for the parcel locker. For example, if there is suspicion that an unauthorized user has gained access to the solar-powered locker's control system, a remote reset can be performed to prevent any further unauthorized access.
A remote alarm system control allows for the remote activation and deactivation of an alarm system on a package locker. This feature is useful for increasing the security of the locker by alerting personnel to any unauthorized access or attempted theft.
The remote alarm system control works by using a central server to communicate with the locker's control system. Authorized personnel can then use a secure login to access the control system and remotely activate or deactivate the alarm system as needed. This can include opening or closing a siren or checking the status of the alarm system.
There are several benefits to using a remote alarm system control on a parcel locker. For example, this feature can help to deter theft or unauthorized access to the locker by alerting personnel to any suspicious activity. Additionally, the remote activation or deactivation of the alarm system can be done quickly and efficiently without requiring physical access to the locker.
Traceability and controlled access for the maintenance system on a solar-powered locker is a feature that allows for the tracking and monitoring of maintenance activities on the locker. This feature provides increased security and accountability for maintenance personnel, as well as ensuring that the locker is properly maintained and functioning optimally.
The traceability feature allows for the tracking of maintenance activities on the parcel locker, including who performed the maintenance and when it was performed. This information can be used to identify any issues or areas that may require additional attention, as well as to ensure that maintenance is being performed on a regular schedule.
Controlled access to the maintenance system allows for the restriction of access to only authorized personnel. This can help to prevent unauthorized access or tampering with the locker's hardware or software, as well as ensuring that maintenance is being performed by qualified personnel.
There are several benefits to using traceability and controlled access for the maintenance system on a package locker. For example, this feature can help to ensure that maintenance is being performed regularly and by qualified personnel, reducing the risk of downtime or other issues that could impact the locker's operations. Additionally, the traceability feature can be used to identify any patterns or trends in maintenance issues, allowing for proactive measures to be taken to prevent future issues.
The Next -Gen Parcel Locker That's Changing the Gamerevolutionizing delivery
ARKA has developed a unique Next-Gen locker with peripherals typically found only in traditional machines. Over eight iterations since the autumn of 2022, the Next-Gen locker, ARKA SunCharge, has evolved into the most technologically advanced solution available in Europe and potentially worldwide.
The SunCharge Locker is modular and expandable, with up to 10 slave units featuring two columns. Additionally, it provides unique optional peripherals, including an LED Touchscreen Display, QR Scanner, PIN pad, CCTV, Alarm System, Video Surveillance, POS, LED Light System, 4G mobile router, and UPS. Its state-of-the-art production management and energy storage system distinguish it, making it arguably the world's only locker.
Our solution is reshaping the locker landscape, turning what was once merely conceivable into a reality. With major carriers already involved in pilot projects, this solution promises to revolutionize the last-mile industry.
User's Benefits
Autonomous solar-powered lockers offer a convenient way to receive and send packages at any time of the day, without the need to interact with a person. This is especially useful for customers who have busy schedules and cannot wait around to have their package delivered
Locker Network Owner Benefits
Autonomous smart parcel lockers are typically very secure and can prevent theft and damage to packages. They usually require a unique code or key to access the locker, which can be sent to the customers or recipients via email or text message
Best Technology Solution
The solar-powered package lockers can save time for both the sender and recipient, as they eliminate the need for physical interaction and waiting for a delivery person. This can be especially useful in busy urban areas where traffic congestion and parking can be an issue
Configuration and options
The configuration and options of a smart battery parcel locker can play an important role in ensuring that it is functional, secure, and customizable to meet the user's needs.
For example, suppose a locker is intended for storing athletic equipment. In that case, it may need to be designed with specific dimensions, ventilation, and locking mechanisms to ensure the equipment is secure and well-maintained.
Its security features can also be affected. Different types of locks, access controls, and monitoring systems can enhance a locker's security and prevent unauthorized access or theft.
Furthermore, the configuration and options of a locker can offer a wide range of customization possibilities. For instance, a locker might feature adjustable shelving to accommodate items of various sizes, different lock types to cater to different security needs, or customizable colors to blend with the surrounding environment or reflect the identity of a specific user group.
ARKA understands that every customer is unique, which is why we offer an array of standard compartment types to suit varying parcel dimensions. But we don't stop there. We also provide the flexibility to design custom models based on your individual needs, ensuring you have a storage solution that perfectly fits your requirements and preferences.
The Solar-Powered Smart Parcel Locker is designed with two standard columns to store and secure parcels while efficiently utilizing renewable energy. To accommodate diverse requirements, our product line offers customizable configurations tailored to meet specific capacity demands. Adjust the number of columns and dimensions as needed, creating the ideal sustainable solution for your unique environment with our solar-powered parcel locker.
Benefits of using solar panels in package delivery lockers
The benefit of using a solar panel in a smart locker is that it can significantly reduce the energy costs of operating the parcel locker. Moreover, these cutting-edge solar panel lockers are designed to be resilient in the face of power outages. They operate on battery power, eliminating the need for an external power source. This design ensures the lockers remain fully functional, even during blackouts or periods of high energy demand on the grid, providing a sense of security and reliability.
Solar panels, as a sustainable and environmentally friendly energy source, offer a compelling solution for reducing a locker's carbon footprint and dependence on non-renewable energy sources. By incorporating solar panels into an autonomous parcel locker, companies can actively contribute to environmental sustainability and align with the growing global focus on renewable energy solutions, fostering a sense of responsibility and commitment to a greener future.
Reduced energy costs
The Autonomous Battery Locker doesn't use electricity, thus saving costs related to its usage. If the locker is outdoors, it utilizes solar radiation energy for the peripherals to function. Solar panels can also provide a long-term return on investment, as they have a lifespan of up to 15 years.
Environmental sustainability
Solar energy is a clean and renewable energy source, which means that using it to power the locker can significantly reduce its carbon footprint. This is especially important for companies looking to use solar power, reduce their environmental impact, and demonstrate their commitment to sustainability.
Increased reliability
Solar panels can provide a reliable energy source, as they do not rely on the electrical grid. This means the autonomous locker can still operate using solar power even during a power outage.
